King ColorBoard®is a High-Density Polyethylene Sheet that is Environmentally Stabilized with Bright Primary Colors for Use in Signage, Industrial, Marine, Playground and Recreational Applications.
Now Available for Upgrade with a ASTM E-84 Class A or B Flame/Smoke Rating and CAN/ULC-S102 for Canadian Rating
- Description
- Specifications
- Physical Properties
- Physical Properties FlameShield Class A
- Flame Rating
- Colors
- LEED Points
- Downloads
King ColorBoard® is a high density polyethylene sheet that is environmentally stabilized for outdoor use. It’s bright, primary colors make it ideal for sign, industrial, marine, playground and recreational applications. For maximum versatility, standard colors are made to coordinate with King ColorCore®. King ColorBoard® features an attractive matte finish and is manufactured to the highest standards in the industry. Base material are FDA approved as are most pigments. It is made with impact resistant high density polyethylene to handle more abuse than conventional sign and playground materials. ColorBoard is environmentally stablized and will never fade or discolor in direct sunlight. And you never have to worry about delamination, rotting or warping with King ColorBoard®. King ColorBoard® is now available with our exclusive antimicrobial additive King MicroShield®. The latest technology for protecting the product surface against a broad spectrum of damaging bacteria, algae, and fungi by reducing the amount of microbes by 99.99%.
Standard Sheet Sizes: (in/mm)
48″ x 96″ / 1219mm x 2438mm
Custom sizes available
Standard Gauge: (in/mm)
1/4″| 1/2″| 3/4″ / 6.4mm | 12.7mm | 19mm
Custom thicknesses available.
Weight: (lbs/kg)
40 lbs | 80 lbs | 120 lbs / 18kg | 36kg | 54kg
Tolerance Information: Gauge ± 5%, both width or length Plus Only at room temperature
| Properties | Units | ASTM | Nominal Values |
| Density | g/cc | D1505 | .96 |
| Tensile Strength @ Yield | psi | D638 | >4100 |
| Tensile Modulus | psi | D638 | 225,00 |
| Elongation @ Yield | % | D638 | 9.8 |
| Elongation @ Break | % | D638 | >600 |
| Flexural Modulus | psi | D790 | 185,000 |
| Flexural Stress @ 5% Strain | psi | D790 | 3,810 |
| Compressive Properties 10% Strain | psi | D695 | 4,950 |
| Durometer | Shore D | D2240 | 68 |
| Tensile Impact | ft.lbs./in.2 | D1822 | 115 |
| Izod Impact Resistance | ft.lbs./in.2 | D256 | 1.1 |
| Brittleness Temp. | ºF | D746 | <-105º |
| Vicat Softening | ºF | D1525 | 253º |
| Heat Deflection Temp. 66 psi | ºF | D648 | 167º |
| Screw and Nail Withdrawl | lbs | D1761 | 657 & 63 |
| Flammability | Rating | UL94 | HB |
*All values are determined on specimens prepared according to ASTM Standards. Nominal
values should not be interpreted as specifications.
King ColorBoard® is made entirely from FDA and USDA approved materials
King ColorBoard® meets ASTM D4976 PE235
King ColorBoard Physical Properties | King ColorBoard MSDS
| Properties | Units | ASTM | Nominal Values |
| Density | g/cc | D1505 | 1.3 – 1.35 |
| Tensile Strength @ Yield | p.s.i. | D638 | 3780 |
| Tensile Strength @ Break | p.s.i. | D663 | 1,170 |
| Elongation @ Yield | % | D638 | 8.6 |
| Elongation @ Break | % | D638 | 53 |
| Flexural Modulus | p.s.i. | D790 | 179,000 |
| Durometer (Hardness) | Shore D | D2240 | 71 |
| Flexural Stress @ 5% Strain | psi | D790 | 4330 |
| Vicat Softening | ºF | D1525 | 264 |
| Heat Deflection Temp. 66p.s.i. |
ºF | D648 | 188 |
| Coefficient of Linear Thermal Expansion |
in./in./ºF | D696 | 6×10-5 |
| Surface Burning Characteristics | FSI & SDI | E-84 | 20 & 60 |
| Surface Burning Characteristics | FSI & SDI | ULC-S102 | 20 & 65 |
Protect Your Interests with E-84 Class A or B Flame Rated Polymer Sheets from King Plastic Corporation
Available in King ColorBoard®
The ASTM E84
This test method is intended to compare the surface flame spread and smoke developed measurements to those obtained from the tests of mineral fiber cement board and select grade red oak flooring. The results are expressed as Flame Spread Index and Smoke Developed Index.
Results
Class A Interior Finish:
Flame Spread Index 0-25, Smoke Developed Index 0-450. Includes any material classified at 25 or less on the flame spread test scale and 450 or less on the smoke developed test scale. Any element thereof when so tested shall not continue to propagate fire.
Class B Interior Finish:
Flame Spread Index 26-75, Smoke Developed Index 0-450. Includes any material classified at 25 but not more than 76 on the flame spread test scale and 450 or less on the smoke developed test scale.

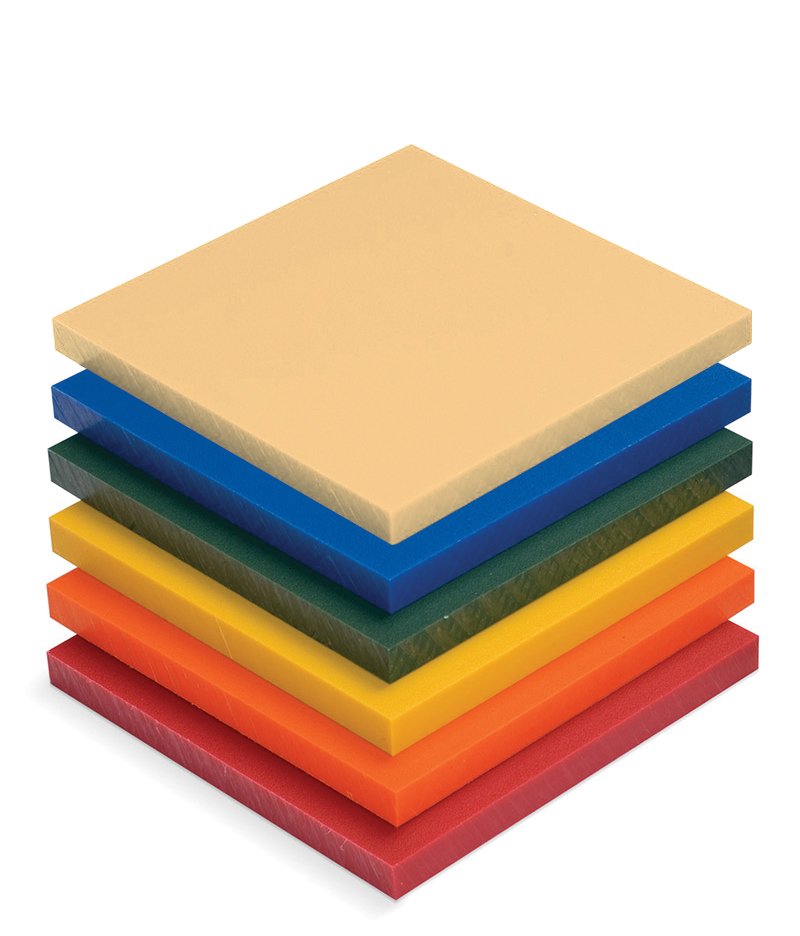

KPG Tan, KPG Blue, KPG Green, KPG Yellow, KPG Orange, KPG Red*Note: Color accuracy can vary considerably on computer monitors and printers. Please consult your distributor for a product sample before making critical color choices. Specialty colors by special order only.
LEED for Existing Buildings, September 2008
1 point: MR Credit 2.2 Sustainable Purchasing: Durable Goods
LEED for New Construction Version 2.2
2 points: MR credit 4.2
Recycled Content
LEED for Schools, First Edition November 2007
2 points: MR Credit 4.2 Recycled Content
