King Hy-Pact® VHMW-PE

There are Many Cases in Which UHMW is Specified for Installations
Where its Ultimate Abrasion and Impact Resistance are Not Necessary,
That is Where King Hy-Pact VHMW-PE Comes In.

Find a Distributor Request a Quote

In many cases, the customer’s only alternative was to use standard HDPE, which lacks the durability of UHMW in most applications. So the King team created King Hy-Pact® VH (very high molecular weight polyethylene), a unique product designed to be a perfect complement to UHMW and to bridge the wide performance gap between HDPE and UHMW.

When used properly, King Hy-Pact VH allows distributors and manufacturers to reduce costs while suffering no performance loss.

Naturally, good design practices dictate that new applications should always be tested before full-scale operations begin.

General Applications:

  • King Hy-Pact VH is environmentally stabilized, making it ideal for indoor or outdoor applications.
  • FDA and USDA approved, with an opaque, white color for a sanitary look.
  • Standard sheet sizes from 1/8″ to 1″ in thickness – with some of the tightest tolerances in the industry.
  • Available standard in 48″ x 120″ sheets or in custom sizes up to 72″ wide and up to 120 feet long, which often saves on installation costs and eliminates the need for splices.
  • Smooth, non-skived finish has a low friction coefficient for better material flow and superior cosmetics compared to UHMW.
  • Not affected by most aqueous acids, alkalis or salt solutions
  • Extremely flat, low-strain sheet made with King Plastic Corporation’s state-of-the art proprietary K-Stran® process.
  • Resistant to caking and bridging (build-up).
  • Suitable for deep-freeze or electrical insulation operations

Sheet Size: (in)
48″ x 120″
Custom widths (up to 72″) and lengths to 120′

Gauge:(in)
1/8″ | 3/16″ | 1/4″ | 1/2″ | 3/4″ | 1″

Weights: (lbs)
25 lbs | 37.5 lbs | 50 | 100 lbs | 150 lbs | 200 lbs

Sheet Size: (mm)
1219mm x 3048mm
Custom widths (up to 1829mm) and lengths to 36,576mm

Gauge: (mm)
3mm | 4.7mm | 6mm | 12.7mm | 19mm

Weights:(kg)
11kg | 17kg | 22.6kg | 45kg | 68kg | 90.7kg

Tolerance Information: Gauge ± 5%, both width or length at roon temperature

Properties Units ASTM Nominal Values
Density g/cc D1505 .95
Tensile Strength @ Yield p.s.i. D638 >3,800
Elongation @ Break % D638 >800
Flexural Modulus p.s.i. D790 155,000
Durometer Shore D D2240 65
Izod Impact ft.lbs./in.2 D256 No Break
Vicat Softening ºF D1525 <-36.4º
Brittleness Temp. ºF D746 255º
Heat Deflection Temp.
66p.s.i.		 ºF D648 160º
Coefficient of Linear
Thermal Expansion		 in/in/ºF D696 7.0×10-5
RoHS compliant

RoHS Statement

King Plastic Corp Sand Slurry Test Taber Industries Abrasion Test
Sand-slurry test vs. carbon steel, with
carbon steel assigned the value of 100.
Lower values indicates lower weight loss/
greater abrasion resistance.		 Average weight loss in grams after 5,000 cycles
Material Relative Value Weight Loss
Steel 100 .57
King Hy-Pact® UH 4 .0115
King Hy-Pact® VH 15 .038
HMW-PE 21 .046
HDPE 36 .056

Tested in a 50/50 mix of sand and water for 8 hours at 1700 rpm
All values are determined on specimens prepared according to ASTM Standards

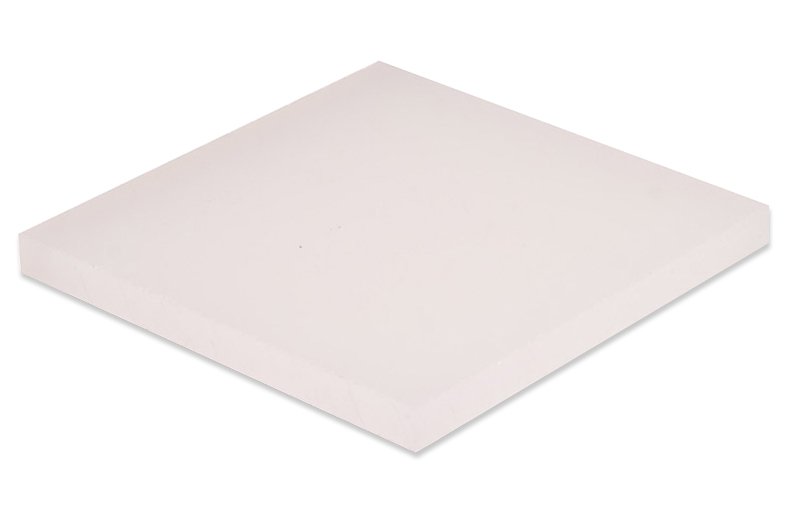

dsc_0089 Translucent White
