The original marine grade high-density polyethylene building sheet.
Now Available for Upgrade with King FlameShield for our ASTM E-84 Class A or B Flame/Smoke Compliance and CAN/ULC-S102 for Canadian Compliance
King StarBoard® is the original marine-grade high-density polyethylene and the industry standard. It is the product of a proprietary process called K-Stran®, the most advanced manufacturing process available for producing consistently flat continuous sheets. King StarBoard® is environmentally stabilized to withstand the harshest marine conditions. It will not rot or discolor like teak and other solid woods, and it will not delaminate like wood laminates. King StarBoard® is easy to work with using standard woodworking tools, and design changes are a snap. In addition, the installed cost of King StarBoard® is less than teak, other common marine woods, and fiberglass. Plus, our large sheet sizes maximize your yield. Boat buyers appreciate King StarBoard®’s low-maintenance finish. Repair and refinishing due to weathering and decay are eliminated, and cleaning is easy. King StarBoard® has a handsome matte finish on both sides to hide scuffs and scratches that would show on glossy textured sheets or acrylics.

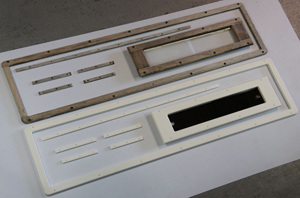

Hatches, Doors, Grab Rails & Handles, Step and Dock Boxes, Rod & Cup Holders, Countertops, Chairs, Tray Tables, Frames and Trim.
Sheet Size:(in/mm) Standard Gauge:(in) Approximate Weight:(lbs) Standard Gauge:(mm) Approximate Weight: (kg) Tolerance information: Gauges ± 5%, both width and length Plus Only at room temperature. Custom sheet sizes and gauges available.
*All values are determined on specimens prepared according to ASTM. Nominal values should not be interpreted as specifications.
Protect Your Interests with E-84 Class A or B Flame Compliance Polymer Sheets from King Plastic Corporation The ASTM E84 This test method is intended to compare the surface flame spread and smoke developed measurements to those obtained from the tests of mineral fiber cement board and select grade red oak flooring. The results are expressed as Flame Spread Index and Smoke Developed Index. Results Class B Interior Finish:
*Note: These images illustrate the various color combinations. Due to the wide variances in computer monitors and printers, King Plastic Corporation does not recommend using these graphics for color matching purposes. Please contact your distributor for details.
King StarBoard® is upgradable with our exclusive antimicrobial additive King MicroShield®. The latest technology for protecting the product surface against a broad spectrum of damaging bacteria, algae, and fungi by reducing the amount of microbes by 99.99% and killing the microbes on contact. See our King MicroShield® page for more information.Popular Applications
General Applications
proprietary K-Stran process for superior flatness
and consistency.
marine environments.
to humidity or water.
density, even for special thickness gauges and custom
order colors.
requires little or no finishing.
any gelcoat.
test required for use in motor vehicles, including
motor homes.
48″ x 96″ (1219mm x 2438mm) | 54″ x 96″ (1371.6 mm x 2438mm)
Please note the only Black and White/White may be order in 48″ x 96″
All colors are standard in 54″ x 96″
1/4″ | 3/8″ | 1/2″ | 3/4″ | 1″ | 1-1/2″
1-1/2″ not available in 54″ x 96″
48″ x 96″
40 lbs | 60 lbs | 80 lbs | 120 lbs | 160 lbs | 240 lbs
54″ x 96″
45 lbs | 67.5 lbs | 90 lbs | 135 lbs | 180 lbs
6.4mm | 9.53mm | 12.7mm | 19mm | 25.4mm | 38.1mm
1219mm x 2438mm
18kg | 27kg | 36kg | 54kg | 72.5kg |109kg
1371.6 mm x 2438mm
20kg | 31kg | 41kg | 61kg | 81kg
Properties
Units
ASTM
Nominal Values
Density
g/cc
D1505
.96
Tensile Strength @ Yield
psi
D638
>4100
Tensile Modulus
psi
D638
225,000
Elongation @ Break
%
D638
>699
Elongation @ Yield
%
D638
9.8
Flexural Modulus
psi
D790
185,000
Flexural Stress @ 5% Strain
psi
D790
3,810
Compressive Properties 10% Strain
psi
D695
4,950
Durometer
Shore D
D2240
68
Tensile Impact
ft.lbs./in.2
D1822
115
Izod Impact Resistance
ft.lbs./in.2
D256
1.1
Brittleness Temp.
ºF
D746
<-105º
Vicat Softening
ºF
D1525
253º
Heat Deflection Temp. 66 psi
ºF
D648
167º
Screw and Nail Withdrawl
lbs
D1761
657 & 63
Slip Resistance (wet)
-
D2047
King StarBoard® is made entirely from FDA and USDA approved materials.
King StarBoard® meets ASTM D4976 PE235
Properties
Units
ASTM
Nominal Values
Density
g/cc
D1505
1.3 – 1.35
Tensile Strength @ Yield
p.s.i.
D638
3780
Tensile Strength @ Break
p.s.i.
D663
1,170
Elongation @ Yield
%
D638
8.6
Elongation @ Break
%
D638
53
Flexural Modulus
p.s.i.
D790
179,000
Durometer (Hardness)
Shore D
D2240
71
Flexural Stress @ 5% Strain
psi
D790
4330
Vicat Softening
ºF
D1525
264
Heat Deflection Temp.
66p.s.i.ºF
D648
188
Coefficient of Linear
Thermal Expansionin./in./ºF
D696
6×10-5
Class A
Class B
Surface Burning Characteristics
FSI & SDI
E-84
20 & 60
60 & 450
Surface Burning Characteristics
FSI & SDI
ULC-S102
20 & 65
60 & 450
Available in King StarBoard® Products
Class A Interior Finish:
Flame Spread Index 0-25, Smoke Developed Index 0-450. Includes any material classified at 25 or less on the flame spread test scale and 450 or less on the smoke developed test scale. Any element thereof when so tested shall not continue to propagate fire.
Flame Spread Index 26-75, Smoke Developed Index 0-450. Includes any material classified at 25 but not more than 76 on the flame spread test scale and 450 or less on the smoke developed test scale.
ASTM E84 Class A Certification | ASTM E84 Class B Certification | FlameShield Physical Properties Sheet | FlameShield MSDS
